Every output is from a real run. The starter project: a 6 m cantilever wall.

InputValue
GeometryH = 6.0 m, B = 4.8 m (toe 1.2 m, heel 3.0 m), stem 0.30–0.60 m, footing 0.70 m, 0.5 m of soil over the toe
Backfillγ = 18 kN/m³, φ′ = 32°, c′ = 0; live surcharge 10 kPa
Foundation soilγ = 19 kN/m³, φ′ = 30°, c′ = 5 kPa; no water
Earth pressureRankine on the virtual back; base friction and adhesion 0.67
EarthquakeTBDY 2018, site class ZC, Ss = 0.8, S1 = 0.22 (off in example 1)
ConcreteC30 / B420C, covers 50 / 60 mm

1. The starter wall ​

bash
lythos-wall example -o project.lwall
lythos-wall run project.lwall
text
CANTILEVER RETAINING WALL — RESULTS
------------------------------------------------------------------------------------------------
Wall: H = 6.00 m, B = 4.80 m (toe 1.20 m, heel 3.00 m), stem 0.30–0.60 m, footing 0.70 m, soil over the toe 0.50 m, β = 0.0°
Earth pressure: Rankine, K = 0.3073 at ω = 0.0° on the virtual back, h = 6.00 m
ΣV = 455.5 kN/m, ΣH = 118.0 kN/m, M_R = 1262.7 kNm/m, M_O = 254.4 kNm/m, e = 0.187 m

STABILITY
                                FS · static  required
  Sliding                              1.55      1.50              OK
  Overturning                          4.96      2.00              OK
  Eccentricity                        0.187     0.800              OK
  Bearing capacity                     7.40      3.00              OK
  Global stability (Bishop)            1.74      1.50              OK
  Global stability (Fellenius)         1.40      1.50  for comparison
  Sliding resistance: friction 166.7 + adhesion 16.1 + passive 0.0 = 182.8 kN/m
  Base pressure: toe 117.5 kPa, heel 86.1 kPa, in contact over 4.80 m
  B' = 4.553 m, σv = 107.3 kPa, q_ult = 794.2 kPa (Vesić (1973))

BEARING CAPACITY BY METHOD
  Method                    Nc      Nq      Nγ  q_ult kPa  q_ult / FS kPa      FS
  Vesić (1973)           30.14   18.40   22.40      794.2           264.7    7.40
  Meyerhof (1963)        30.14   18.40   15.67      614.3           204.8    5.73
  Brinch Hansen (1970)   30.14   18.40   15.07      589.9           196.6    5.50
  Terzaghi (1943)        37.16   22.46   20.12    1,568.0           522.7   14.61
  EN 1997-1 Annex D      30.14   18.40   20.09      747.4           249.1    6.97

EARTH PRESSURE BY METHOD (virtual back)
  Method                     K     ω °      Kh  P kN/m  Ph kN/m  Pv kN/m
  Rankine               0.3073     0.0  0.3073   118.0    118.0      0.0
  Coulomb               0.2750    21.4  0.2560   105.6     98.3     38.6
  At rest (K0)          0.4701     0.0  0.4701   180.5    180.5      0.0
  Trial wedge           0.2750    21.4  0.2560   105.6     98.3     38.6
  Rankine passive (Kp)   3.000
  Coulomb passive (Kp)   4.977

REINFORCED CONCRETE DESIGN (TS 500)
  C30 / B420C: fcd = 20.00 MPa, fctd = 1.278 MPa, fyd = 365.2 MPa, ρmax = 0.0200

SECTIONS
  Section                                h mm    d mm  Md kNm   Vd kN  As req. mm²  As min mm²     Bars  As prov. mm²   Mr/Md  Vcr/Vd   Comb.  Status
  Stem, base (back face)                  600     543   288.6   123.5        1,500       1,200  Ø14/100         1,539    1.03    3.65      C1      OK
  Footing, bottom (toe)                   700     631    96.7    76.2          423       1,400  Ø18/175         1,454    3.38    6.88      C1      OK
  Footing, top (heel)                     700     631   246.9   128.8        1,092       1,400  Ø18/175         1,454    1.32    4.07      C2      OK
  Stem, front face (minimum)              600                                  600              Ø14/250           616                              OK
  Stem, horizontal (each face)            450                                  337              Ø12/300           377                              OK
  Footing, along the wall (each face)     700                                  525              Ø12/200           565                              OK
  The stem bars run the full height.

BAR BENDING SCHEDULE (per metre of wall)
  Pos.                             Bar    Ø mm    s mm  Length m  Number /m  Total m    kg/m  Mass kg
  1       Stem, back face, full height      14     100      6.05      10.00    60.54   1.208     73.2
  2                   Stem, front face      14     250      6.05       4.00    24.18   1.208     29.2
  3                   Stem, horizontal      12     300      1.00         36    36.00   0.888     32.0
  4                    Footing, bottom      18     175      5.16       5.71    29.50   1.998     58.9
  5                       Footing, top      18     175      5.16       5.71    29.50   1.998     58.9
  6            Footing, along the wall      12     200      1.00         48    48.00   0.888     42.6
               Steel per metre of wall                                                          294.8
  Concrete 5.745 m³/m, steel 294.8 kg/m (51 kg/m³)

  The stability checks need a heel of 2.87 m; the wall has 3.00 m.
Sliding FS1.55
Overturning FS4.96
Bearing FS7.40
Global FS (Bishop)1.74
Stem barsØ14/100
Steel295 kg/m

Reading the output. Sliding is the tightest check (1.55 against 1.50); the stability checks need a 2.87 m heel and the wall has 3.00 m. Coulomb gives a smaller thrust than Rankine because the thrust leans on the virtual back; the trial wedge reproduces Coulomb. The five bearing methods span 590 to 1 568 kPa — Terzaghi's factors stand apart. At the stem base Mr/Md = 1.03: Ø14/100 is just enough. Fellenius is shown for comparison only; it is known to be conservative.

2. An earthquake by TBDY 2018 ​

Turning the earthquake on ("seismic": {"enabled": true, ...} in the project file):

bash
lythos-wall run seis.lwall
text
STABILITY
                                FS · static  required                  FS · seismic  required
  Sliding                              1.55      1.50              OK          0.74      1.10          NOT OK
  Overturning                          4.96      2.00              OK          1.87      1.50              OK
  Eccentricity                        0.187     0.800              OK         0.978     1.600              OK
  Bearing capacity                     7.40      3.00              OK          1.47      1.40              OK
  Global stability (Bishop)            1.74      1.50              OK          1.20      1.10              OK
  Global stability (Fellenius)         1.40      1.50  for comparison          0.97      1.10  for comparison
  Sliding resistance: friction 166.7 + adhesion 16.1 + passive 0.0 = 182.8 kN/m
  Base pressure: toe 117.5 kPa, heel 86.1 kPa, in contact over 4.80 m
  B' = 4.553 m, σv = 107.3 kPa, q_ult = 794.2 kPa (Vesić (1973))

EARTHQUAKE (TBDY 2018)
  Parameter                                      Value
  Local site class                                  ZC
  Ss / S1                                0.800 / 0.220
  Fs / F1                                1.200 / 1.500
  SDS / SD1                              0.960 / 0.330
  TA / TB / TL                   0.069 / 0.344 / 6.0 s
  Displacement factor βr                          0.50
  kh / kv                                0.192 / 0.096
  Dynamic thrust                        Mononobe–Okabe
  KAE                                           0.4509
  Dynamic increment ΔPAE            34.3 kN/m @ 3.00 m
  Inertia of wall and soil kh·W              85.3 kN/m
  Governing kv                               kv upward
kh / kv0.192 / 0.096
Seismic sliding FS0.74
Seismic bearing FS1.47
Seismic global FS1.20

Reading the output. SDS = 0.8 × 1.2 = 0.96 and, for a wall free to move (βr = 0.5), kh = 0.5·0.4·0.96 = 0.192. The dynamic increment (34 kN/m) is smaller than the inertia of the wall and the soil on its heel (85 kN/m) — the inertia is the larger part of the seismic load that brings sliding down to 0.74. The heel also carries more moment in the seismic combination C3−, and its top steel goes from Ø18/175 to Ø18/150.

3. A shear key and a longer heel ​

The wall of example 2 slides. A shear key with the passive resistance in front of it counted, then a deeper key, then a slightly longer heel:

python
from lythoswall import forms
from lythoswall.web.session import Session

session = Session(lang="en")
base = forms.defaults()                 # H = 6 m, B = 4.8 m, heel 3.0 m
base["seismic_enabled"] = True          # TBDY 2018, ZC, Ss = 0.8, S1 = 0.22

cases = {
    "as drawn": {},
    "shear key": dict(key_enabled=True, key_depth=0.6, passive=True),
    "shear key 1.0 m": dict(key_enabled=True, key_depth=1.0, passive=True),
    "+ heel 3.40 m": dict(key_enabled=True, key_depth=1.0, passive=True, heel=3.4),
}
for name, change in cases.items():
    r = session.analyse({**base, **change})
    sliding = r["stability"]["rows"][0]["cells"]
    print(f"{name:16s} sliding FS static {sliding[1]}  seismic {sliding[4]}"
          f"   heel needed {r['required_heel']:.2f} m")
text
as drawn         sliding FS static 1.55  seismic 0.74   heel needed 7.75 m
shear key        sliding FS static 2.08  seismic 0.98   heel needed 4.57 m
shear key 1.0 m  sliding FS static 2.28  seismic 1.07   heel needed 3.39 m
+ heel 3.40 m    sliding FS static 2.43  seismic 1.10   heel needed 3.39 m

With no key the heel would have to be 7.75 m. A 1.0 m key brings the heel it needs down to 3.39 m, and with a 3.40 m heel every check holds, static and seismic. The key's moment and shear are designed like the rest of the wall.

4. The drawing and the DXF ​

bash
lythos-wall run project.lwall -o report.pdf --dxf wall.dxf

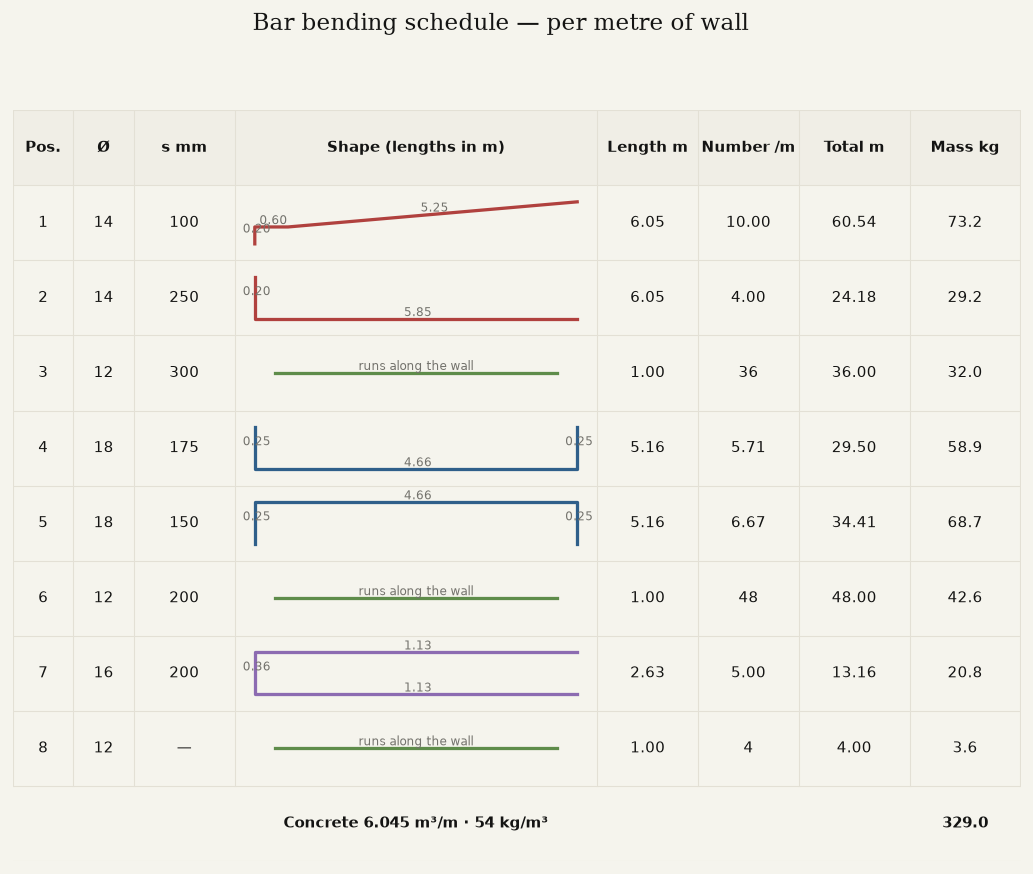

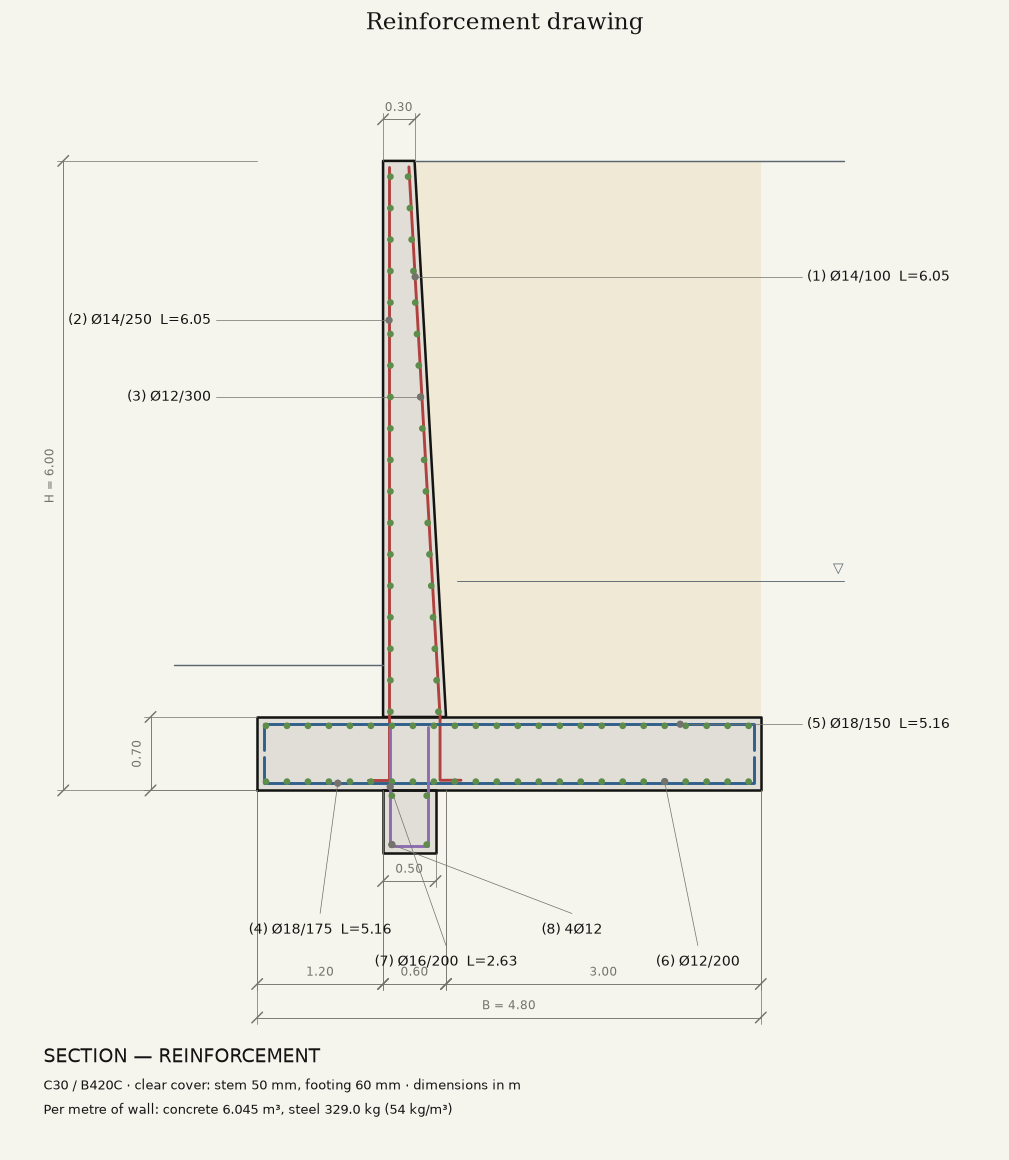

The report carries every table above with the figures, the warnings and the method notes. wall.dxf is an AutoCAD R12 drawing in millimetres, with the layers CONCRETE, REBAR, REBAR_DIST, DIMENSION, TEXT, GROUND and LEADER; the bar positions match the bar bending schedule.
